QualityLine and Circuit Check are bringing test data and manufacturing analytics together to give teams a clearer view of what is happening across production. By connecting information from machines, test equipment and plant systems, manufacturers can move from isolated results to actionable insights, faster root-cause analysis and earlier detection of quality issues.

Key takeaways

  • Connect data from test, inspection, production and plant systems in one analytics environment.
  • Move beyond pass/fail results to understand where problems start and what needs attention.
  • Use real manufacturing data for live monitoring, failure analysis, prediction and process improvement.

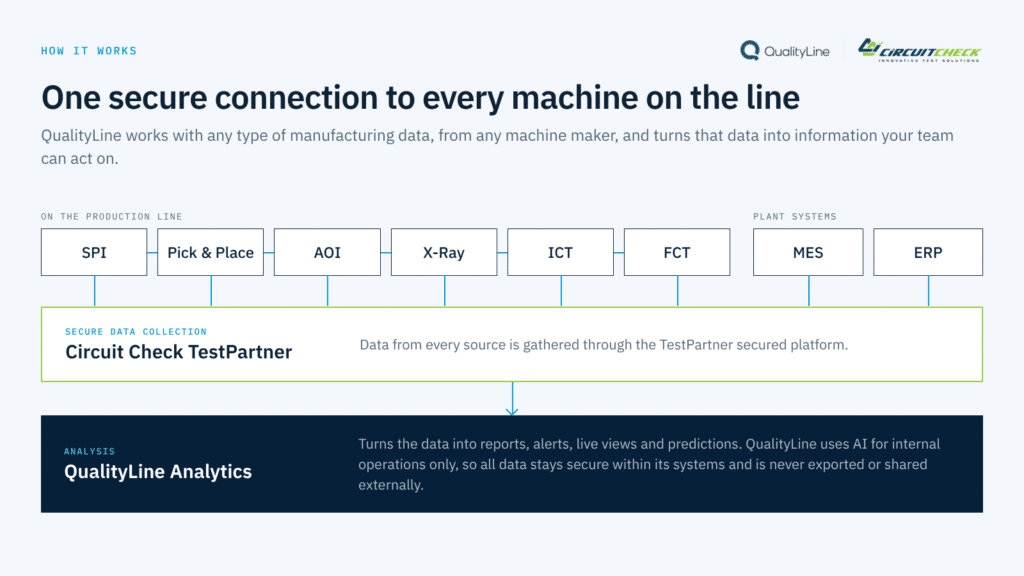

One Connection Across the Production Line

A manufacturing line already generates the data engineers need. The challenge is that it usually lives across different machines and systems.

QualityLine can bring together information from sources such as SPI, Pick & Place, AOI, X-Ray, ICT, FCT, MES and ERP, while Circuit Check TestPartner provides the secure connection for collecting test data.

The result is one connected flow from data collection to analytics and action.

Instead of analyzing each station in isolation, manufacturing teams can see the wider production story and investigate how activity at one stage relates to quality results later in the process.

What Teams Can Do With Connected Manufacturing Data

Connecting the data is only the first step. The real value comes from what manufacturing and quality teams can do with it.
QualityLine turns production and test data into practical outputs teams can use during day-to-day operations, from identifying current problems to recognizing units that may be at risk.

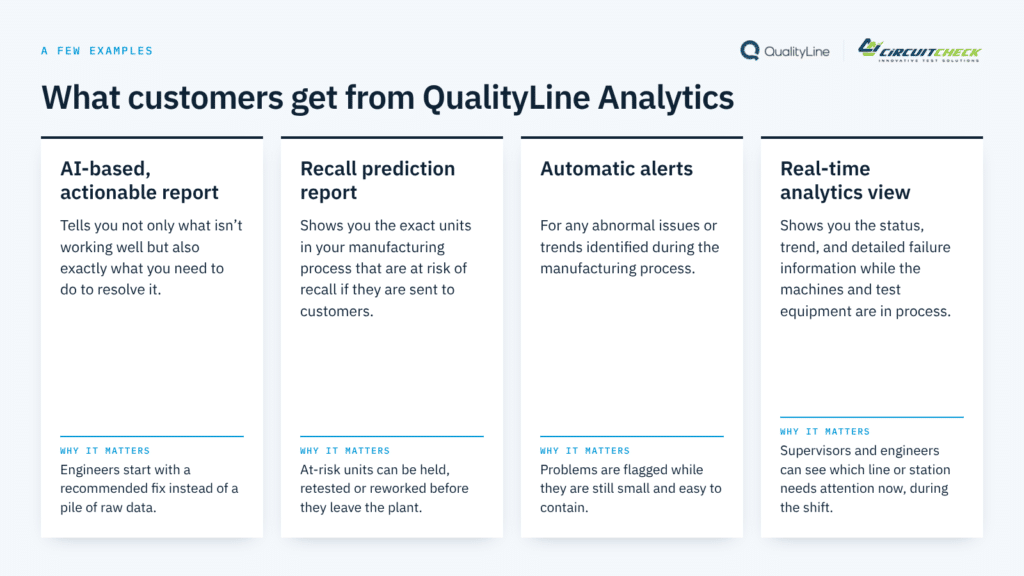

That includes AI-based actionable reporting, recall prediction, automatic alerts and real-time analytics, giving teams different ways to move from data to decisions.

What This Looks Like in Practice

The following examples show how connected manufacturing data can answer different questions across the production process.
Now we use the remaining images as individual scenarios.

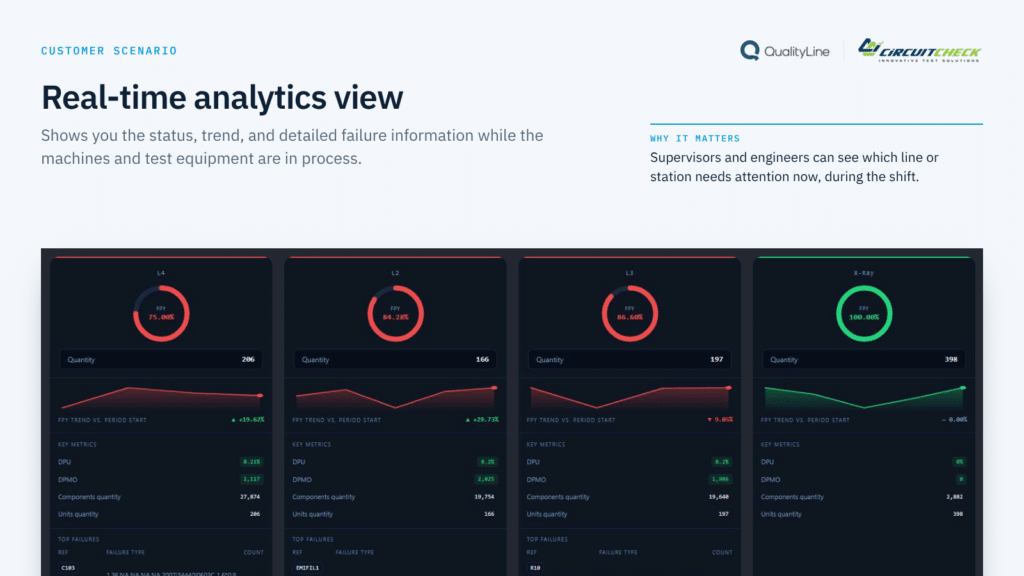

See What Needs Attention During the Shift

A real-time analytics view gives supervisors and engineers visibility into production status, trends and detailed failure information while machines and test equipment are still running.
Instead of waiting until the end of a shift or reviewing separate reports, teams can quickly identify which line or station requires attention.





Trace Pick & Place Failures to the Source

A failure detected later in the process may originate much earlier.
With Pick & Place analytics, teams can drill into rejects by machine, table, track, segment and nozzle. This gives maintenance and process teams a much more specific place to investigate instead of checking the entire line.
